Optimise your workstation with the PPS SQ compressed air network

PPS-SQ-compressedair-network

Compressed air network PPS SQ

A complete and customizable compressed air solution

The PPS SQ line transforms individual workstations into an air source.

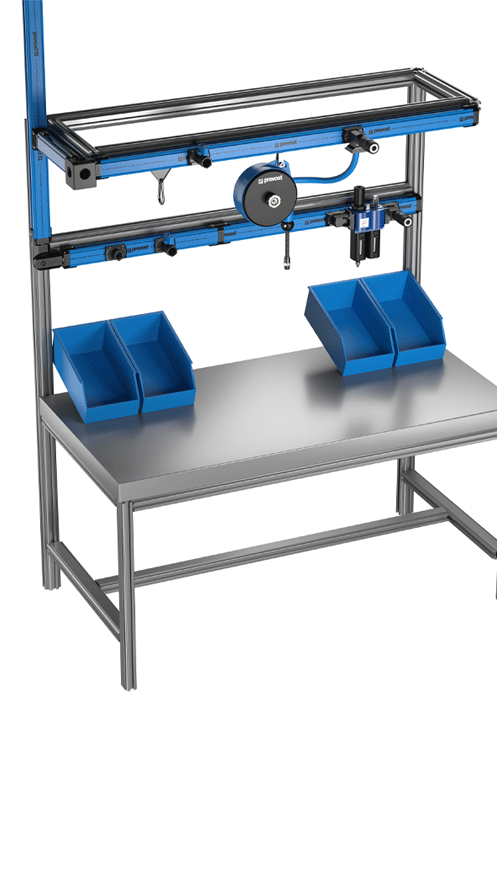

■ Design ergonomic, compact and aesthetic assembly bench to increase efficiency and productivity.

■ The PPS SQ line integrates seamlessly into a new or existing Prevost Piping System air network by connecting directly into drops at:

- Automatic machine lines
- Individual workstations/workbench
- Pneumatic control cabinets
- Factory assembly
- Production lines

The aluminum profile is compatible with other existing systems on the market and accepts a wide range of complementary accessories and equipment.

PPS-SQ-compressed-air-network-prevost

Air powered aluminum profiles for your assembly lines

Characteristics and specifications of the compressed air network PPS SQ

Pressure: - 0,98 bar to + 16 bar
Temperature: - 20°C to + 80°C
Color: blue or grey
Size: 1 m or 2 m
Rectangular section size: 30 x 45 mm
Inside diameter: Ø 25 mm

Why choose PPS SQ?

Advantages of the PPS SQ air network

■ 100% Aluminum
■ Improve workstation ergonomics
■ Streamlined, clean look
■ Fully customizable
■ Quality and safety guaranteed
■ Leak free performance
■ Easily operated and adaptable
