Parallel male thread coupler

BSPP male thread
G 1/4
Profile
British
Technology
"One push" safety system (avoids hose whip)
Operating pressure
2 to 12 bar
Flow rate at 6 bar
750 l/min (ΔP : 0,6 bar)
ID Passage
6 mm
Temperature
-15°C to +70°C
Construction
Composite body
Highlight
Anti-static Non scratch

Description

Reference
BSPP male thread
BSI 061151
BSI 061152
BSI 061153

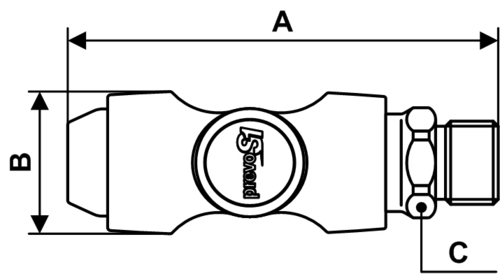

Dimensions

1968_BSI 061150.jpg
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BSI 061151
83.9
30
20
BSI 061152
85.9
30
23
BSI 061153
89.9
30
26

Description

Reference BSPP male thread 3D
BSI 061151 G 1/4 3D
BSI 061152 G 3/8 3D
BSI 061153 G 1/2 3D

Dimensions

Reference A mm B mm C mm
BSI 061151 83.9 30 20
BSI 061152 85.9 30 23
BSI 061153 89.9 30 26
1968_BSI 061150.jpg
