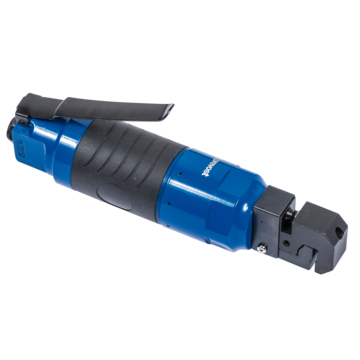

Punching and flanging tool
Net weight (kg)
1,376
Flow rate
113.00 l/min
Level sound
88.00 DBA
Max. output pressure
6.20 bar
Power
370 KW
Female thread
R1/4
Description
Reference
Net weight (kg)
Flow rate
Level sound
Max. output pressure
Power
Female thread
TPF 5

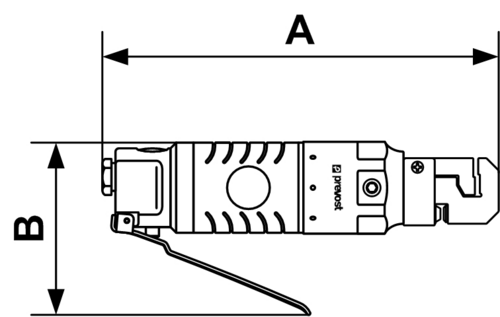

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
TPF 5
242
105
Description
| Reference | Net weight (kg) | Flow rate | Level sound | Max. output pressure | Power | Female thread | 3D |
|---|---|---|---|---|---|---|---|
| TPF 5 | 1,376 | 113.00 l/min | 88.00 DBA | 6.20 bar | 370 KW | R1/4 |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| TPF 5 | 242 | 105 |
