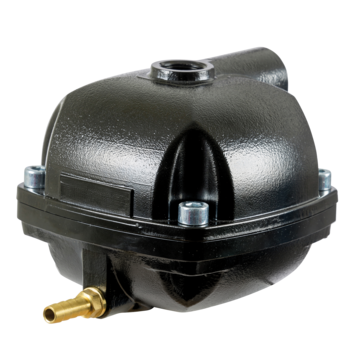

Magnetic drain condensate draining
Flow rate
3.00 l/min
Material
Aluminium
Max. output pressure
16.00 bar
Female thread
G1/2
Temperature
2.00°C to 50.00°C
Description
Reference
Flow rate
Material
Max. output pressure
Female thread
Temperature
PMA 201

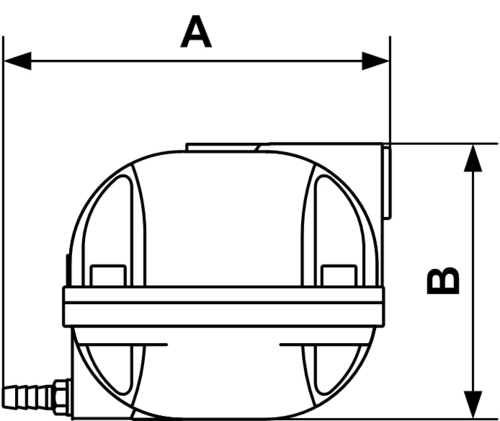

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PMA 201
145
105
Description
| Reference | Flow rate | Material | Max. output pressure | Female thread | Temperature | 3D |
|---|---|---|---|---|---|---|
| PMA 201 | 3.00 l/min | Aluminium | 16.00 bar | G1/2 | 2.00°C to 50.00°C |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PMA 201 | 145 | 105 |
Supports & documentation
Here you will find the general catalogue, product documentation, safety data sheets, technical manuals and documents related to our spare parts.
