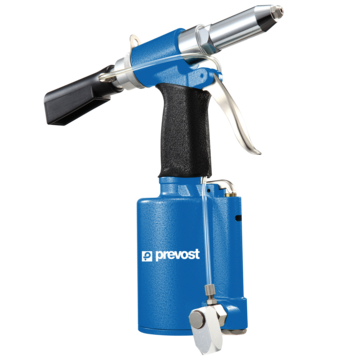

Hydro-pneumatic riveter with suction system
Net weight (kg)
2,056
Flow rate
123.00 l/min
Diamétre 1 =
1219 kg
Diamétre 2 =
14
Level sound
60.00 DBA
Max. output pressure
6.20 bar
Female thread
R1/4
Description
Reference
Net weight (kg)
Flow rate
Diamétre 1 =
Diamétre 2 =
Level sound
Max. output pressure
Female thread
TAR 481220
TAR 641895
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
TAR 481220
261
277
TAR 641895
273
323
Description
| Reference | Net weight (kg) | Flow rate | Diamétre 1 = | Diamétre 2 = | Level sound | Max. output pressure | Female thread | 3D |
|---|---|---|---|---|---|---|---|---|
| TAR 481220 | 2,056 | 123.00 l/min | 1219 kg | 14 | 60.00 DBA | 6.20 bar | R1/4 | |
| TAR 641895 | 2,796 | 148.00 l/min | 1894 kg | 19 | 63.00 DBA | 6.20 bar | R1/4 |

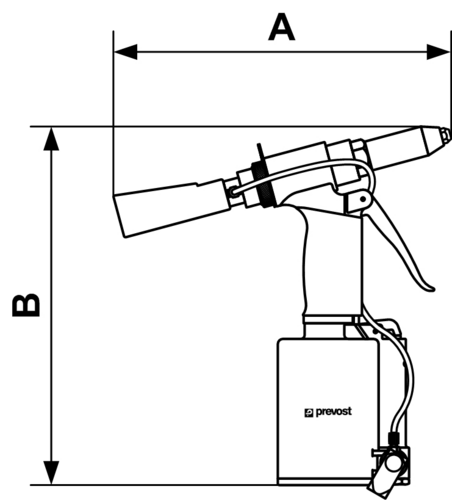

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| TAR 481220 | 261 | 277 |
| TAR 641895 | 273 | 323 |
