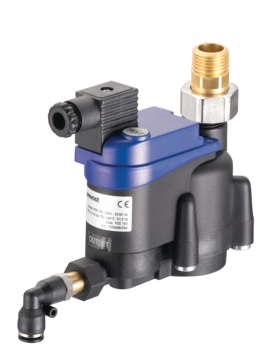

Automatic Drain Thread BSP
Net weight (kg)
0,521
Flow rate
5 l/min
Protection
IP65
Time of opening
0,5 - 10 s
Male thread
R1/2
Frequency of opening
0,5 - 45 m
Max. output pressure
16.00 bar
Temperature
1.00°C to 60.00°C
Supply voltage
230.00 V
ID passage
4,5 mm
For hose ID
8 mm
Description
Reference
Net weight (kg)
Flow rate
Protection
Time of opening
Male thread
Frequency of opening
Max. output pressure
Temperature
Supply voltage
ID passage
For hose ID
Compatibility
PDE 100
PDE 100KR

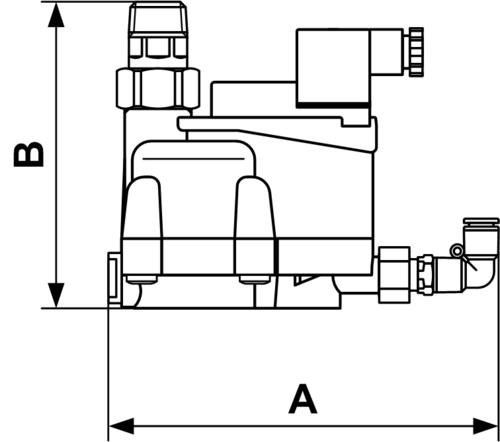

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PDE 100
155.2
121.9
PDE 100KR
Description
| Reference | Net weight (kg) | Flow rate | Protection | Time of opening | Male thread | Frequency of opening | Max. output pressure | Temperature | Supply voltage | ID passage | For hose ID | Compatibility | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PDE 100 | 0,521 | 5 l/min | IP65 | 0,5 - 10 s | R1/2 | 0,5 - 45 m | 16.00 bar | 1.00°C to 60.00°C | 230.00 V | 4,5 mm | 8 mm | ||
| PDE 100KR | 0,075 | 0,5-10 s | 0,5 - 45 min | 16 bar | +2°C to +55°C | 230 V | 4,5 | PDE 100T |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PDE 100 | 155.2 | 121.9 |
| PDE 100KR |
