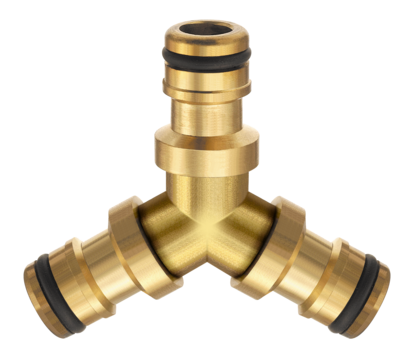

Y connector
Net weight (kg)
0,111
Material
Chromed brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
ELP 096003
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELP 096003
61
68
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Security | Temperature | ID passage | Type of filling | 3D |
|---|---|---|---|---|---|---|---|---|
| ELP 096003 | 0,111 | Chromed brass | 10.00 bar | Without safety | -15.00°C to 60.00°C | 9 mm | Straight-through |

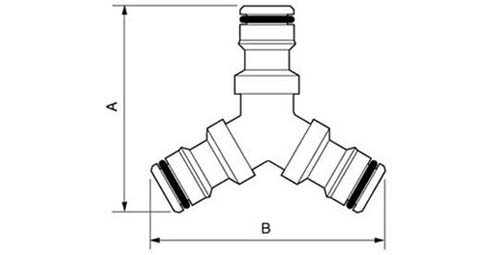

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| ELP 096003 | 61 | 68 |
