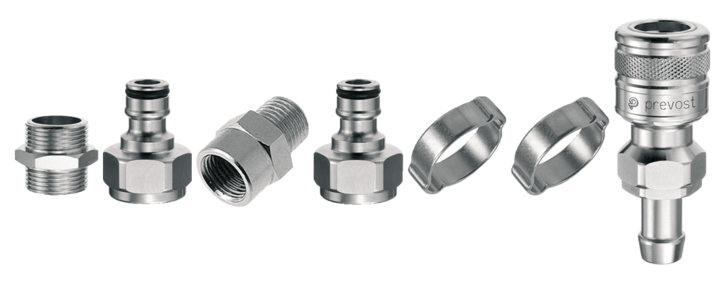

Water-connection kit
Net weight (kg)
0,65
Flow rate
24.00 l/min ,ΔP = 0.30 bar)
Material
Brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
For hose ID
13 mm
Description
Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
For hose ID
ELS KITBP13
ELS KITBP15
ELS KITBP19
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELS KITBP13
ELS KITBP15
ELS KITBP19
Description
| Reference | Net weight (kg) | Flow rate | Material | Max. output pressure | Security | Temperature | ID passage | For hose ID | 3D |
|---|---|---|---|---|---|---|---|---|---|
| ELS KITBP13 | 0,65 | 24.00 l/min ,ΔP = 0.30 bar) | Brass | 10.00 bar | Without safety | -15.00°C to 60.00°C | 9 mm | 13 mm | |
| ELS KITBP15 | 0,653 | 24.00 l/min ,ΔP = 0.30 bar) | Brass | 10.00 bar | Without safety | -15.00°C to 60.00°C | 9 mm | 15 mm | |
| ELS KITBP19 | 0,664 | 24.00 l/min ,ΔP = 0.30 bar) | Brass | 10.00 bar | Without safety | -15.00°C to 60.00°C | 9 mm | 19 mm |
