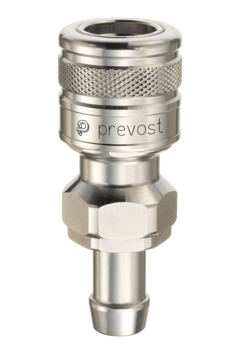

Valved hose tail coupler

899_ELS_091815
899_ELS_091815
Net weight (kg)
0,263
Flow rate
24.00 l/min ,ΔP = 0.30 bar)
Material
Brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Valved
For hose ID
13 mm

Description

Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
For hose ID
ELS 091813
ELS 091815
ELS 091819

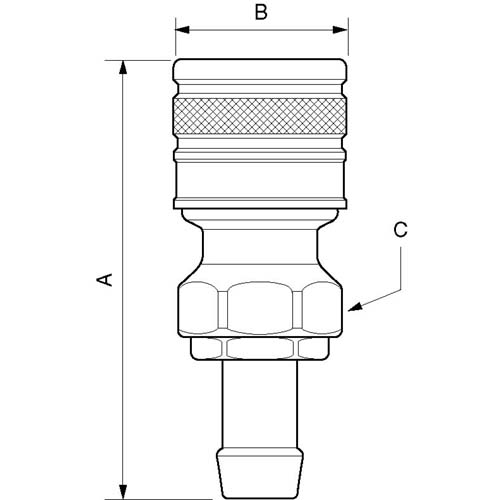

Dimensions

ELS_091815
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELS 091813
89
35
30
ELS 091815
89
35
30
ELS 091819
89
35
30

Description

Reference Net weight (kg) Flow rate Material Max. output pressure Security Temperature ID passage Type of filling For hose ID 3D
ELS 091813 0,263 24.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety -15.00°C to 60.00°C 9 mm Valved 13 mm 3D
ELS 091815 0,252 24.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety -15.00°C to 60.00°C 9 mm Valved 15 mm 3D
ELS 091819 0,259 24.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety -15.00°C to 60.00°C 9 mm Valved 19 mm 3D

Dimensions

Reference A mm B mm C mm
ELS 091813 89 35 30
ELS 091815 89 35 30
ELS 091819 89 35 30
ELS_091815
