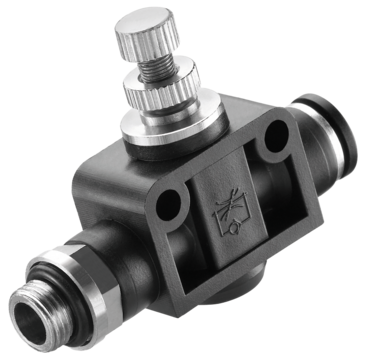

Unidirectional regulator - Parallel male thread/Tube - RPL TG
Material
Polymer
Max. output pressure
10 bar
Max. temperature
60 °C
Plus de références
Reference
Net weight (kg)
Ø ext. (mm)
Male thread
Pour tube Ø ext.
RPL TG0400
RPL TG0600
RPL TG0601
RPL TG0800
RPL TG0801
RPL TG0802
RPL TG1001
RPL TG1002
RPL TG1003
RPL TG1201
RPL TG1202
RPL TG1203
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPL TG0400
54.1
30
12
48.6
30.1
RPL TG0600
55.5
43
12
50
31
RPL TG0601
56
43
14
50
31.5
RPL TG0800
61.8
47
14
56.3
34.3
RPL TG0801
61.8
47
14
55.8
34.3
RPL TG0802
63.3
47
17
56.8
35.8
RPL TG1001
70.9
54
17
64.9
39.4
RPL TG1002
70.9
54
17
64.4
39.4
RPL TG1003
71.5
54
21
63.5
40
RPL TG1201
81.7
59
19
75.7
44.2
RPL TG1202
81.2
59
19
74.7
43.7
RPL TG1203
82.7
59
21
74.7
45.2
| Reference | Net weight (kg) | Ø ext. (mm) | Male thread | Pour tube Ø ext. | 3D |
|---|---|---|---|---|---|
| RPL TG0400 | 0,018 Kg | 4 mm | G1/8 | 4 mm | |
| RPL TG0600 | 0,035 Kg | 6 mm | G1/8 | 6 mm | |
| RPL TG0601 | 0,037 Kg | 6 mm | G1/4 | 6 mm | |
| RPL TG0800 | 0,047 Kg | 8 mm | G1/8 | 8 mm | |
| RPL TG0801 | 0,047 Kg | 8 mm | G1/4 | 8 mm | |
| RPL TG0802 | 0,053 Kg | 8 mm | G3/8 | 8 mm | |
| RPL TG1001 | 0,075 Kg | 10 mm | G1/4 | 10 mm | |
| RPL TG1002 | 0,076 Kg | 10 mm | G3/8 | 10 mm | |
| RPL TG1003 | 0,085 Kg | 10 mm | G1/2 | 10 mm | |
| RPL TG1201 | 0,13 Kg | 12 mm | G1/4 | 12 mm | |
| RPL TG1202 | 0,13 Kg | 12 mm | G3/8 | 12 mm | |
| RPL TG1203 | 0,136 Kg | 12 mm | G1/2 | 12 mm |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPL TG0400 | 54.1 | 30 | 12 | 48.6 | 30.1 |
| RPL TG0600 | 55.5 | 43 | 12 | 50 | 31 |
| RPL TG0601 | 56 | 43 | 14 | 50 | 31.5 |
| RPL TG0800 | 61.8 | 47 | 14 | 56.3 | 34.3 |
| RPL TG0801 | 61.8 | 47 | 14 | 55.8 | 34.3 |
| RPL TG0802 | 63.3 | 47 | 17 | 56.8 | 35.8 |
| RPL TG1001 | 70.9 | 54 | 17 | 64.9 | 39.4 |
| RPL TG1002 | 70.9 | 54 | 17 | 64.4 | 39.4 |
| RPL TG1003 | 71.5 | 54 | 21 | 63.5 | 40 |
| RPL TG1201 | 81.7 | 59 | 19 | 75.7 | 44.2 |
| RPL TG1202 | 81.2 | 59 | 19 | 74.7 | 43.7 |
| RPL TG1203 | 82.7 | 59 | 21 | 74.7 | 45.2 |
