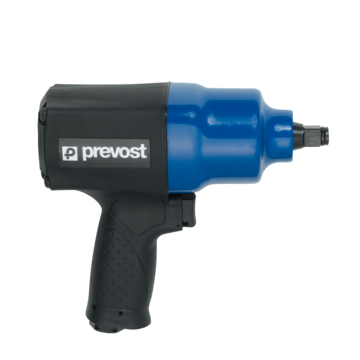

TIW - Limited torque composite air impact wrench - Twin hammer
Torque
108.00mm to 814.00mm
Flow rate
125.00 l/min
Diamétre 1 =
1/2
Level sound
88.00 DBA
Max. output pressure
6.20 bar
Female thread
R1/4
Speed of rotation
2500.00 RPM
Description
Reference
Torque
Flow rate
Diamétre 1 =
Level sound
Max. output pressure
Female thread
Speed of rotation
TIW C12L815

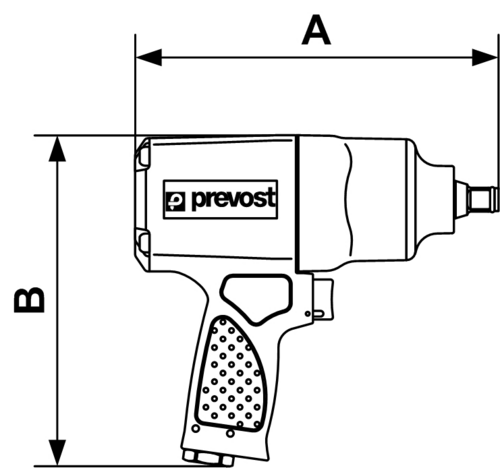

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
TIW C12L815
193
176
Description
| Reference | Torque | Flow rate | Diamétre 1 = | Level sound | Max. output pressure | Female thread | Speed of rotation | 3D |
|---|---|---|---|---|---|---|---|---|
| TIW C12L815 | 108.00mm to 814.00mm | 125.00 l/min | 1/2 | 88.00 DBA | 6.20 bar | R1/4 | 2500.00 RPM |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| TIW C12L815 | 193 | 176 |
Supports & documentation
Here you will find the general catalogue, product documentation, safety data sheets, technical manuals and documents related to our spare parts.
