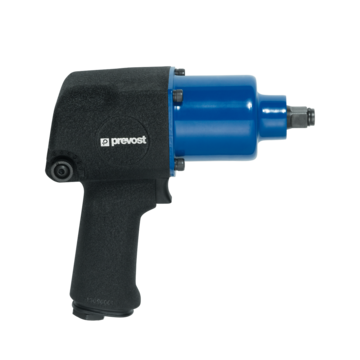

TIW - Aluminum impact wrench for intensive use - Twin hammer
Torque
949.00 mm
Flow rate
119.00 l/min
Diamétre 1 =
1/2
Level sound
94.00 DBA
Max. output pressure
6.20 bar
Female thread
R1/4
Speed of rotation
7000.00 RPM
Description
Reference
Torque
Flow rate
Diamétre 1 =
Level sound
Max. output pressure
Female thread
Speed of rotation
TIW A120950
TIW A341490

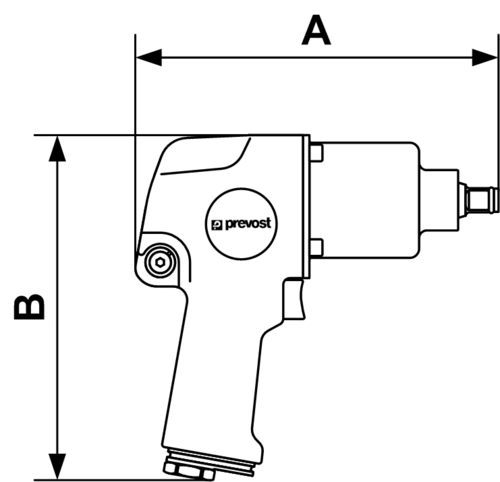

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
TIW A120950
195
185
TIW A341490
221
240
Description
| Reference | Torque | Flow rate | Diamétre 1 = | Level sound | Max. output pressure | Female thread | Speed of rotation | 3D |
|---|---|---|---|---|---|---|---|---|
| TIW A120950 | 949.00 mm | 119.00 l/min | 1/2 | 94.00 DBA | 6.20 bar | R1/4 | 7000.00 RPM | |
| TIW A341490 | 1492.00 mm | 269.00 l/min | 3/4 | 96.00 DBA | 6.20 bar | R3/8 | 5500.00 RPM |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| TIW A120950 | 195 | 185 |
| TIW A341490 | 221 | 240 |
