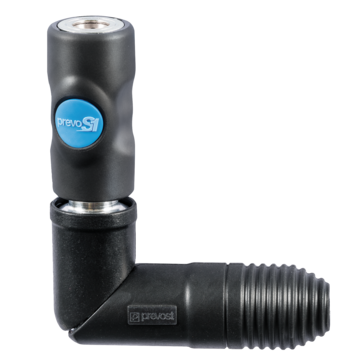

thread swivel coupler
Net weight (kg)
0,167
Flow rate
833.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Material
Composite
Max. output pressure
12.00 bar
Security
Safety
Female thread
G1/4
Temperature
-15.00°C to 70.00°C
ID passage
6 mm
Profile
ISO 6150B
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Profile
Type of filling
ISI 061101SW
ISI 061102SW

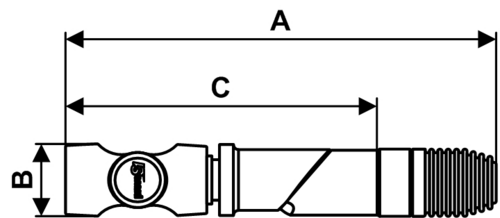

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 061101SW
172
30
125.3
ISI 061102SW
172
30
125.3
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| ISI 061101SW | 172 | 30 | 125.3 |
| ISI 061102SW | 172 | 30 | 125.3 |
