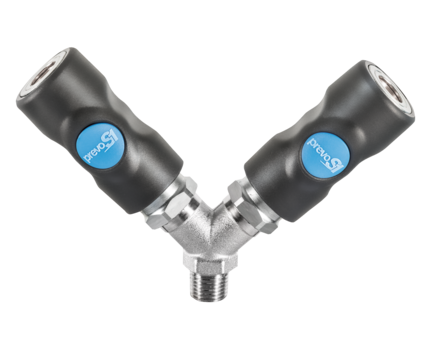

Tapered parallel male thread twin coupler
Net weight (kg)
0,234
Flow rate
833.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Male thread
R1/4
Material
Composite
Max. output pressure
12.00 bar
Security
Safety
Temperature
-15.00°C to 70.00°C
ID passage
6 mm
Profile
ISO 6150B
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Profile
Type of filling
ISI 068151
ISI 068152
ISI 068153

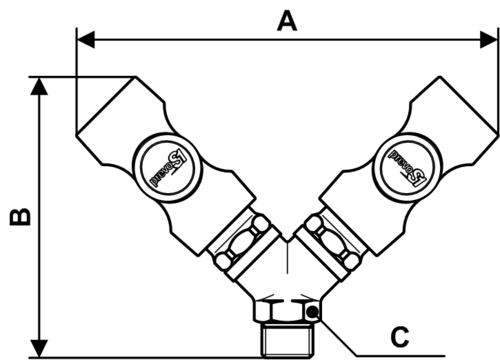

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 068151
134
88
17
ISI 068152
140
92
20
ISI 068153
150
104
25
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| ISI 068151 | 134 | 88 | 17 |
| ISI 068152 | 140 | 92 | 20 |
| ISI 068153 | 150 | 104 | 25 |
