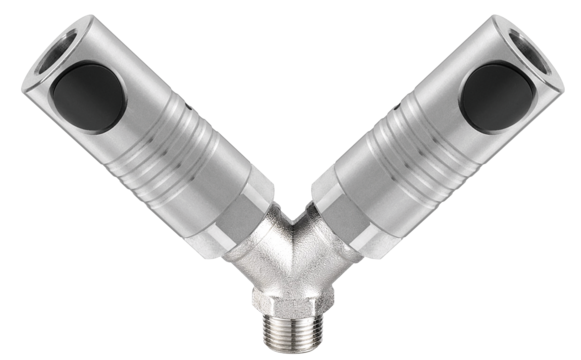

Tapered male thread twin coupler
Flow rate
4120 l/min (P = 6 bar, ΔP = 0.6 bar)
Material
Stainless steel
Max. output pressure
16 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
11 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Male thread
Profile
CSM 118153
CSM 118154

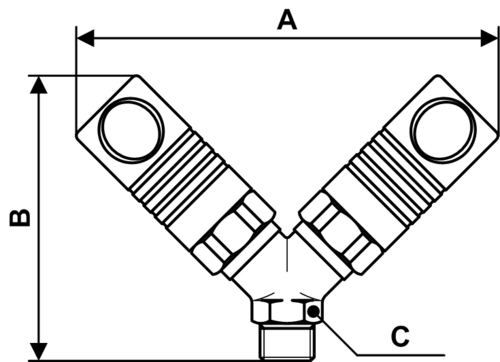

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CSM 118153
173
115
25
CSM 118154
183
150
32
