Tapered male thread s/steel adaptor - Stainless Steel
Net weight (kg)
0,052
Flow rate
800.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Male thread
R1/4
Material
Composite; Stainless steel
Max. output pressure
12.00 bar
Temperature
-15.00°C to 70.00°C
ID passage
6 mm
Profile
ISO 6150B
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Male thread
Material
Max. output pressure
Temperature
ID passage
Profile
Type of filling
PROXI 066151
PROXI 066152

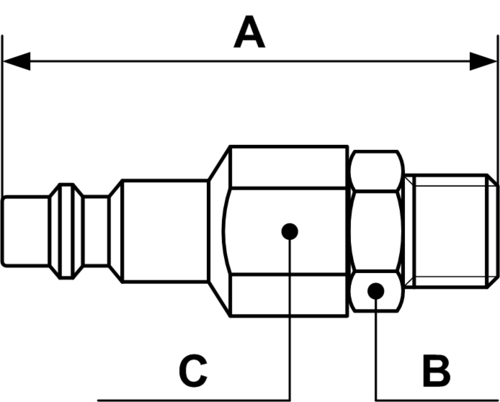

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PROXI 066151
65
17
17
PROXI 066152
65
17
20
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PROXI 066151 | 65 | 17 | 17 |
| PROXI 066152 | 65 | 17 | 20 |
