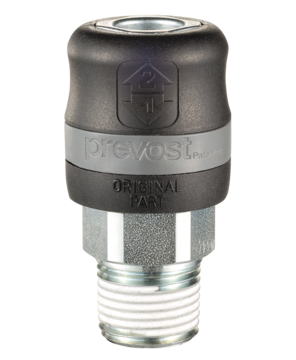

Tapered male thread coupler
Flow rate
1966 l/min (P = 6 bar, ΔP = 0.6 bar)
Material
Composite
Max. output pressure
12 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
8 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Male thread
Profile
OSG 081161
OSG 081162
OSG 081163

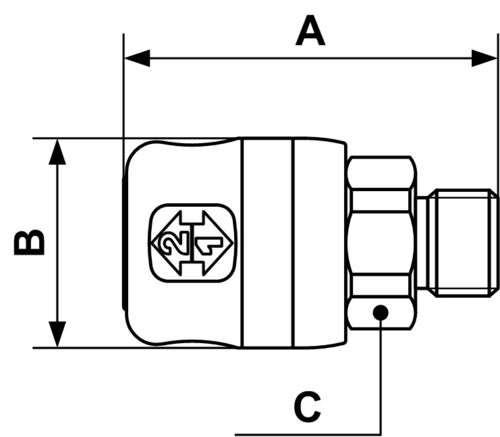

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
OSG 081161
59
33
27
OSG 081162
59
33
27
OSG 081163
63
33
27
| Reference | Net weight (kg) | Male thread | Profile | 3D |
|---|---|---|---|---|
| OSG 081161 | 0,104 Kg | R1/4 | ASIAN | |
| OSG 081162 | 0,109 Kg | R3/8 | ASIAN | |
| OSG 081163 | 0.125 Kg | R1/2 | ASIAN |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| OSG 081161 | 59 | 33 | 27 |
| OSG 081162 | 59 | 33 | 27 |
| OSG 081163 | 63 | 33 | 27 |
