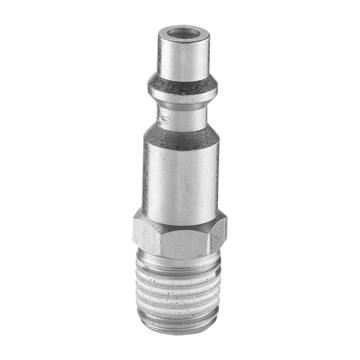

Tapered male thread adaptor
Net weight (kg)
0,019
Male thread
R1/4
Material
Steel
Security
Safety
ID passage
6 mm
Profile
ISO 6150B
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Male thread
Material
Security
ID passage
Profile
Type of filling
IRP 066151
IRP 066152
IRP 066354

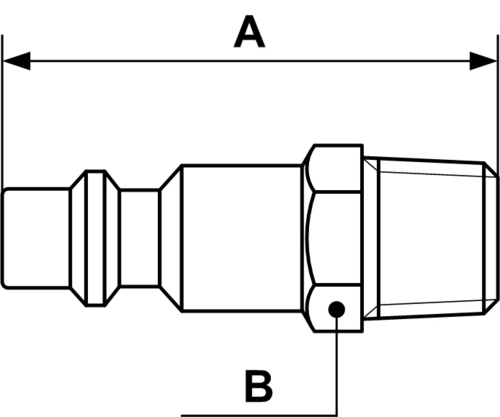

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
IRP 066151
39.5
13
IRP 066152
42
17
IRP 066354
43
17
Description
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| IRP 066151 | 39.5 | 13 |
| IRP 066152 | 42 | 17 |
| IRP 066354 | 43 | 17 |
