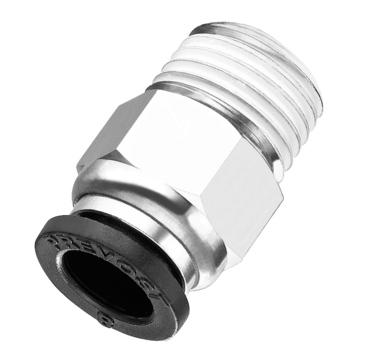

Tapered male straight adaptor - RPD MR
Net weight (kg)
0,006
Ø ext. (mm)
4.00
Male thread
R1/8
Material
Polymer
Max. output pressure
10.00 bar
Temperature
0.00°C to 60.00°C
For pipe OD
4 mm
Description
Reference
Net weight (kg)
Male thread
Ø ext. (mm)
Material
Max. output pressure
Temperature
For pipe OD
RPD MR0400
RPD MR0401
RPD MR0500
RPD MR0501
RPD MR0502
RPD MR0503
RPD MR0600
RPD MR0601
RPD MR0602
RPD MR0603
RPD MR0800
RPD MR0801
RPD MR0802
RPD MR0803
RPD MR1000
RPD MR1001
RPD MR1002
RPD MR1003
RPD MR1201
RPD MR1202
RPD MR1203
RPD MR1402
RPD MR1403
RPD MR1602
RPD MR1603
RPD MR1820
RPD MR2121
RPD MR2122
RPD MR2123
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPD MR0400
21
11.5
10
13.5
RPD MR0401
20
16
14
11
RPD MR0500
22
14
12
14.5
RPD MR0501
21
16
14
12
RPD MR0502
23
19.5
17
12
RPD MR0503
25.5
24
21
12.5
RPD MR0600
22
14
12
14.5
RPD MR0601
21
16
14
12
RPD MR0602
23
19.5
17
12
RPD MR0603
25.5
24
21
12.5
RPD MR0800
27
16
14
19.5
RPD MR0801
24
16
14
15
RPD MR0802
24.5
19.5
17
13.5
RPD MR0803
26
24
21
13
RPD MR1000
28
19.5
17
20.5
RPD MR1001
29
19.5
17
20
RPD MR1002
27
19.5
17
16
RPD MR1003
26
24
21
13
RPD MR1201
33
22
19
24
RPD MR1202
29.5
22
19
18.5
RPD MR1203
27.5
24
21
8
RPD MR1402
33.1
25
22
22.1
RPD MR1403
31.2
25
22
18.2
RPD MR1602
35
27.5
24
24
RPD MR1603
33
27.5
24
20
RPD MR1820
RPD MR2121
RPD MR2122
RPD MR2123
Description
| Reference | Net weight (kg) | Male thread | Ø ext. (mm) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|---|
| RPD MR0400 | 0,006 | R1/8 | 4.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 4 mm | |
| RPD MR0401 | 0,012 | R1/4 | 4.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 4 mm | |
| RPD MR0500 | 0,007 | R1/8 | 5.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPD MR0501 | 0,011 | R1/4 | 5.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPD MR0502 | 0,021 | R3/8 | 5.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPD MR0503 | 0,039 | R1/2 | 5.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPD MR0600 | 0,007 | R1/8 | 6.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPD MR0601 | 0,011 | R1/4 | 6.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPD MR0602 | 0,02 | R3/8 | 6.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPD MR0603 | 0,039 | R1/2 | 6.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPD MR0800 | 0,012 | R1/8 | 8.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPD MR0801 | 0,011 | R1/4 | 8.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPD MR0802 | 0,018 | R3/8 | 8.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPD MR0803 | 0,036 | R1/2 | 8.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPD MR1000 | 0,017 | R1/8 | 10.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPD MR1001 | 0,018 | R1/4 | 10.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPD MR1002 | 0,019 | R3/8 | 10.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPD MR1003 | 0,033 | R1/2 | 10.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPD MR1201 | 0,024 | R1/4 | 12.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm | |
| RPD MR1202 | 0,022 | R3/8 | 12.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm | |
| RPD MR1203 | 0,032 | R1/2 | 12.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm | |
| RPD MR1402 | 0,029 | R3/8 | 14.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 14 mm | |
| RPD MR1403 | 0,031 | R1/2 | 14.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 14 mm | |
| RPD MR1602 | 0,036 | R3/8 | 16.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 16 mm | |
| RPD MR1603 | 0,038 | R1/2 | 16.00 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 16 mm | |
| RPD MR1820 | 0,008 | 1/8" NPT | ||||||
| RPD MR2121 | 0,035 | 1/4" NPT | ||||||
| RPD MR2122 | 0,033 | 3/8" NPT | ||||||
| RPD MR2123 | 0,035 | 1/2" NPT |
Dimensions
| Reference | A mm | B mm | C mm | D mm |
|---|---|---|---|---|
| RPD MR0400 | 21 | 11.5 | 10 | 13.5 |
| RPD MR0401 | 20 | 16 | 14 | 11 |
| RPD MR0500 | 22 | 14 | 12 | 14.5 |
| RPD MR0501 | 21 | 16 | 14 | 12 |
| RPD MR0502 | 23 | 19.5 | 17 | 12 |
| RPD MR0503 | 25.5 | 24 | 21 | 12.5 |
| RPD MR0600 | 22 | 14 | 12 | 14.5 |
| RPD MR0601 | 21 | 16 | 14 | 12 |
| RPD MR0602 | 23 | 19.5 | 17 | 12 |
| RPD MR0603 | 25.5 | 24 | 21 | 12.5 |
| RPD MR0800 | 27 | 16 | 14 | 19.5 |
| RPD MR0801 | 24 | 16 | 14 | 15 |
| RPD MR0802 | 24.5 | 19.5 | 17 | 13.5 |
| RPD MR0803 | 26 | 24 | 21 | 13 |
| RPD MR1000 | 28 | 19.5 | 17 | 20.5 |
| RPD MR1001 | 29 | 19.5 | 17 | 20 |
| RPD MR1002 | 27 | 19.5 | 17 | 16 |
| RPD MR1003 | 26 | 24 | 21 | 13 |
| RPD MR1201 | 33 | 22 | 19 | 24 |
| RPD MR1202 | 29.5 | 22 | 19 | 18.5 |
| RPD MR1203 | 27.5 | 24 | 21 | 8 |
| RPD MR1402 | 33.1 | 25 | 22 | 22.1 |
| RPD MR1403 | 31.2 | 25 | 22 | 18.2 |
| RPD MR1602 | 35 | 27.5 | 24 | 24 |
| RPD MR1603 | 33 | 27.5 | 24 | 20 |
| RPD MR1820 | ||||
| RPD MR2121 | ||||
| RPD MR2122 | ||||
| RPD MR2123 |
