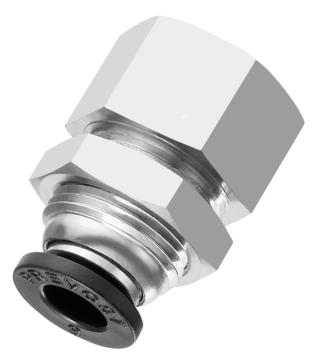

Tapered female straight bulkhead fitting - RPD TR
Net weight (kg)
0.08
Max. output pressure
10 bar
Female thread
NPT1/8
Max. temperature
60 °C
Description
Reference
Net weight (kg)
Max. output pressure
Female thread
Max. temperature
RPD TR3120
RPD TR3121
RPD TR3821
RPD TR3822

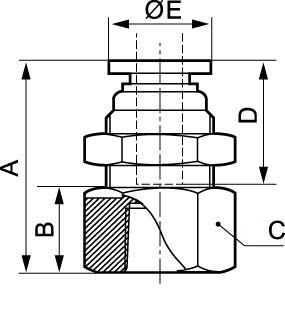

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPD TR3120
27
11
9
17
12.8
RPD TR3121
29
14
11
17
12.8
RPD TR3821
34.5
14
7
19.3
16.8
RPD TR3822
35.5
15
7
19.3
16.8
Description
| Reference | Net weight (kg) | Max. output pressure | Female thread | Max. temperature | 3D |
|---|---|---|---|---|---|
| RPD TR3120 | 0.08 | 10 bar | NPT1/8 | 60 °C | |
| RPD TR3121 | 0.08 | 10 bar | NPT1/4 | 60 °C | |
| RPD TR3821 | 0,057 | 10 bar | NPT1/4 | 60 °C | |
| RPD TR3822 | 0,051 | 10 bar | NPT3/8 | 60 °C |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPD TR3120 | 27 | 11 | 9 | 17 | 12.8 |
| RPD TR3121 | 29 | 14 | 11 | 17 | 12.8 |
| RPD TR3821 | 34.5 | 14 | 7 | 19.3 | 16.8 |
| RPD TR3822 | 35.5 | 15 | 7 | 19.3 | 16.8 |
