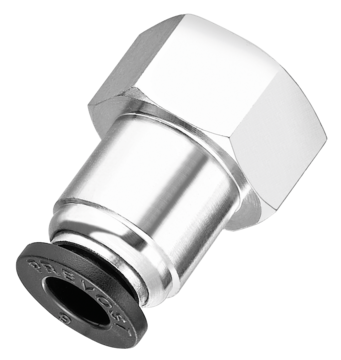

Tapered female straight adaptor - RPD FR
Net weight (kg)
0,013
Female thread
1/8" NPT
Description
Reference
Net weight (kg)
Female thread
Max. output pressure
Max. temperature
RPD FR1820
RPD FR2121
RPD FR2122
RPD FR3120
RPD FR3121
RPD FR3821
RPD FR3822
RPD FR4120
RPD FR4121
RPD FR5120
RPD FR5121
RPD FR5122
RPD FR5320
RPD FR5321
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPD FR1820
RPD FR2121
RPD FR2122
RPD FR3120
26.5
11
1
9
12.8
RPD FR3121
29
14
11
12
12.8
RPD FR3821
32.6
14
7
12
16.8
RPD FR3822
33.6
15
7
13
16.8
RPD FR4120
28
11
9
9
12.8
RPD FR4121
31
14
11
12
12.8
RPD FR5120
30
11
11
9
13.8
RPD FR5121
32
14
11
12
13.8
RPD FR5122
32.5
15
7
13
13.8
RPD FR5320
26.5
11
1
9
10
RPD FR5321
29
14
11
12
10
Description
| Reference | Net weight (kg) | Female thread | Max. output pressure | Max. temperature | 3D |
|---|---|---|---|---|---|
| RPD FR1820 | 0,013 | 1/8" NPT | |||
| RPD FR2121 | 0,055 | 1/4" NPT | |||
| RPD FR2122 | 0,048 | 3/8" NPT | |||
| RPD FR3120 | 1/8" NPT | 10 bar | 60 °C | ||
| RPD FR3121 | 1/4" NPT | 10 bar | 60 °C | ||
| RPD FR3821 | 0,052 | 1/4" NPT | 10 bar | 60 °C | |
| RPD FR3822 | 0,042 | 3/8" NPT | 10 bar | 60 °C | |
| RPD FR4120 | 0,017 | 1/8" NPT | 10 bar | 60 °C | |
| RPD FR4121 | 0,025 | 1/4" NPT | 10 bar | 60 °C | |
| RPD FR5120 | 0,028 | 1/8" NPT | 10 bar | 60 °C | |
| RPD FR5121 | 0,027 | 1/4" NPT | 10 bar | 60 °C | |
| RPD FR5122 | 0,041 | 3/8" NPT | 10 bar | 60 °C | |
| RPD FR5320 | 0,013 | 1/8" NPT | 10 bar | 60 °C | |
| RPD FR5321 | 0,024 | 1/4" NPT | 10 bar | 60 °C |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPD FR1820 | |||||
| RPD FR2121 | |||||
| RPD FR2122 | |||||
| RPD FR3120 | 26.5 | 11 | 1 | 9 | 12.8 |
| RPD FR3121 | 29 | 14 | 11 | 12 | 12.8 |
| RPD FR3821 | 32.6 | 14 | 7 | 12 | 16.8 |
| RPD FR3822 | 33.6 | 15 | 7 | 13 | 16.8 |
| RPD FR4120 | 28 | 11 | 9 | 9 | 12.8 |
| RPD FR4121 | 31 | 14 | 11 | 12 | 12.8 |
| RPD FR5120 | 30 | 11 | 11 | 9 | 13.8 |
| RPD FR5121 | 32 | 14 | 11 | 12 | 13.8 |
| RPD FR5122 | 32.5 | 15 | 7 | 13 | 13.8 |
| RPD FR5320 | 26.5 | 11 | 1 | 9 | 10 |
| RPD FR5321 | 29 | 14 | 11 | 12 | 10 |
