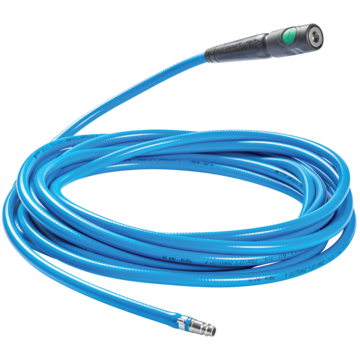

SURFLEX hose extension with PREVOS1 safety quick couplers
Net weight (kg)
1,2
Ø ext. (mm)
13.00
Ø int. (mm)
8.00
Lenght
10.00 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 60.00°C
ID passage
7.4 mm
Profile
EUROPEAN
Description
Reference
Net weight (kg)
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
RAL XESB810
RAL XESB812
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RAL XESB810
RAL XESB812
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Ø int. (mm) | Lenght | Max. output pressure | Temperature | ID passage | Profile | 3D |
|---|---|---|---|---|---|---|---|---|---|
| RAL XESB810 | 1,2 | 13.00 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 7.4 mm | EUROPEAN | |
| RAL XESB812 | 1,4 | 13.00 | 8.00 | 12.50 m | 12.00 bar | -15.00°C to 60.00°C | 7.4 mm | EUROPEAN |
