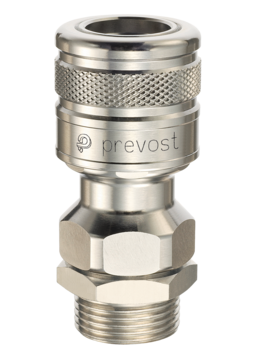

Straight-through parallel male thread coupler
Net weight (kg)
0,253
Flow rate
34.00 l/min ,ΔP = 0.30 bar)
Male thread
G1/2
Material
Brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Flow rate
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
ELS 090153
ELS 090154
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELS 090153
76
35
30
ELS 090154
76
35
30
Description
