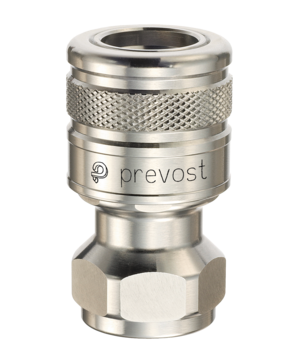

Straight-through parallel female thread coupler

894_ELS_091100
894_ELS_091100
Net weight (kg)
0,234
Flow rate
34.00 l/min ,ΔP = 0.30 bar)
Material
Brass
Max. output pressure
10.00 bar
Security
Without safety
Female thread
G1/2
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Straight-through

Description

Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Type of filling
ELS 090103
ELS 090104
ELS 090105

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELS 090103
61
35
30
ELS 090104
61
35
30
ELS 090105
62.5
35
38

Description

Reference Net weight (kg) Flow rate Material Max. output pressure Security Female thread Temperature ID passage Type of filling 3D
ELS 090103 0,234 34.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety G1/2 -15.00°C to 60.00°C 9 mm Straight-through 3D
ELS 090104 0,2 34.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety G3/4 -15.00°C to 60.00°C 9 mm Straight-through 3D
ELS 090105 0,3 34.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety G1 -15.00°C to 60.00°C 9 mm Straight-through 3D
