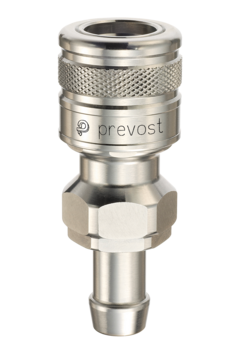

Straight-through hose tail coupler

896_ELS_091815
896_ELS_091815
Net weight (kg)
0,262
Flow rate
34.00 l/min ,ΔP = 0.30 bar)
Material
Brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Straight-through
For hose ID
13 mm

Description

Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
For hose ID
ELS 090813
ELS 090815
ELS 090819

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELS 090813
89
35
30
ELS 090815
89
35
30
ELS 090819
89
35
30

Description

Reference Net weight (kg) Flow rate Material Max. output pressure Security Temperature ID passage Type of filling For hose ID 3D
ELS 090813 0,262 34.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety -15.00°C to 60.00°C 9 mm Straight-through 13 mm 3D
ELS 090815 0,251 34.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety -15.00°C to 60.00°C 9 mm Straight-through 15 mm 3D
ELS 090819 0,257 34.00 l/min ,ΔP = 0.30 bar) Brass 10.00 bar Without safety -15.00°C to 60.00°C 9 mm Straight-through 19 mm 3D
