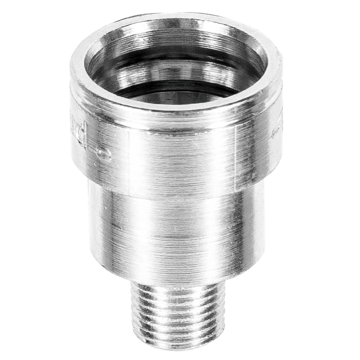

Straight socket tapered male thread
Net weight (kg)
0,026
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Male thread
R1/8
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Flow rate
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
CPI 081160
CPI 081161
CPI 081162
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 081160
30.5
8.5
6.5
16.4
21
CPI 081161
31.5
10.5
9
16.4
21
CPI 081162
24
13
11
16.4
21
Description
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| CPI 081160 | 30.5 | 8.5 | 6.5 | 16.4 | 21 |
| CPI 081161 | 31.5 | 10.5 | 9 | 16.4 | 21 |
| CPI 081162 | 24 | 13 | 11 | 16.4 | 21 |
