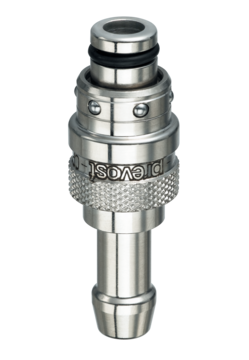

Straight plug for hose
Net weight (kg)
0,0525
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through
For hose ID
8 mm
Description
Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
For hose ID
CPI 086808
CPI 086810
CPI 086812

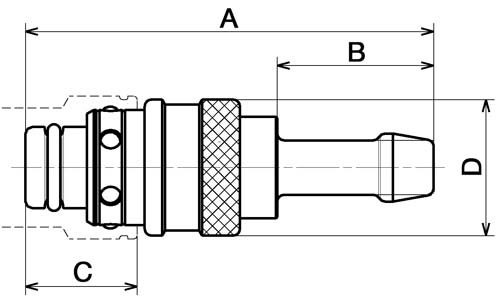

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 086808
60
23
16.4
20
CPI 086810
60
23
16.4
20
CPI 086812
66
28
16.4
20
Description
Dimensions
| Reference | A mm | B mm | C mm | D mm |
|---|---|---|---|---|
| CPI 086808 | 60 | 23 | 16.4 | 20 |
| CPI 086810 | 60 | 23 | 16.4 | 20 |
| CPI 086812 | 66 | 28 | 16.4 | 20 |
