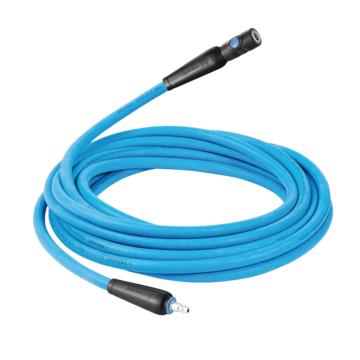

STOFLEX anti-static rubber hose extension with PREVOS1 safety quick couplers
STOFLEX anti-static rubber hose extension with PREVOS1 safety quick couplers
Ø ext. (mm)
18.00
Ø int. (mm)
10.00
Lenght
12.50 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 70.00°C
ID passage
6 mm
Profile
ARO 210
Description
Reference
Net weight (kg)
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
RAL SASB1012
RAL SASB810
RAL SBSB1012
RAL SBSB810
RAL SCSB1012
RAL SCSB810
RAL SESB1012
RAL SESB810
RAL SISB1012
RAL SISB810
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RAL SASB1012
RAL SASB810
RAL SBSB1012
RAL SBSB810
RAL SCSB1012
RAL SCSB810
RAL SESB1012
RAL SESB810
RAL SISB1012
RAL SISB810
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Ø int. (mm) | Lenght | Max. output pressure | Temperature | ID passage | Profile | 3D |
|---|---|---|---|---|---|---|---|---|---|
| RAL SASB1012 | 18.00 | 10.00 | 12.50 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | ARO 210 | ||
| RAL SASB810 | 15.00 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | ARO 210 | ||
| RAL SBSB1012 | 3,1 | 18.00 | 10.00 | 12.50 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | BRITISH | |
| RAL SBSB810 | 1,9 | 15.00 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | BRITISH | |
| RAL SCSB1012 | 2,5 | 18.00 | 10.00 | 12.50 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | ISO 6150C | |
| RAL SCSB810 | 1,9 | 15.00 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | ISO 6150C | |
| RAL SESB1012 | 3,08 | 18.00 | 10.00 | 12.50 m | 12.00 bar | -15.00°C to 70.00°C | 7.4 mm | EUROPEAN | |
| RAL SESB810 | 1,82 | 15.00 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 70.00°C | 7.4 mm | EUROPEAN | |
| RAL SISB1012 | 2,85 | 18.00 | 10.00 | 12.50 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | ISO 6150B | |
| RAL SISB810 | 1,96 | 15.00 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 70.00°C | 6 mm | ISO 6150B |
