Socket extender - Smooth version - Threading to be cut: R 1/4 or NPT 1/4

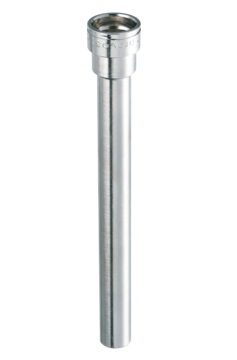

1517_CPI_081100L14
1517_CPI_081100L14
Net weight (kg)
0,083
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through

Description

Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
CPI 081100L14
CPI 081150L14
CPI 081200L14

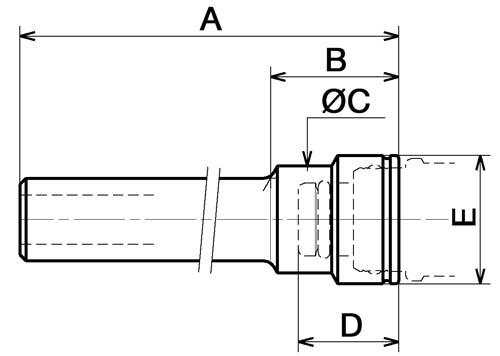

Dimensions

CPI_081100L14
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 081100L14
100
21
17.5
16.4
21
CPI 081150L14
150
21
17.5
16.4
21
CPI 081200L14
200
21
17.5
16.4
21

Description

Reference Net weight (kg) Flow rate Material Max. output pressure Security Temperature ID passage Type of filling 3D
CPI 081100L14 0,083 30.00 l/min ,ΔP = 0.50 bar) Nickel-plated brass 10.00 bar Without safety -15.00°C to 90.00°C 8 mm Straight-through 3D
CPI 081150L14 0,1223 30.00 l/min ,ΔP = 0.50 bar) Nickel-plated brass 10.00 bar Without safety -15.00°C to 90.00°C 8 mm Straight-through 3D
CPI 081200L14 0,16 30.00 l/min ,ΔP = 0.50 bar) Nickel-plated brass 10.00 bar Without safety -15.00°C to 90.00°C 8 mm Straight-through 3D

Dimensions

Reference A mm B mm C mm D mm E mm
CPI 081100L14 100 21 17.5 16.4 21
CPI 081150L14 150 21 17.5 16.4 21
CPI 081200L14 200 21 17.5 16.4 21
CPI_081100L14
