Socket extender parallel male thread G 1/8

1566_CPI_081050F14
1566_CPI_081050F14
Net weight (kg)
0,031
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through

Description

Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
CPI 081050F18
CPI 081100F18
CPI 081150F18

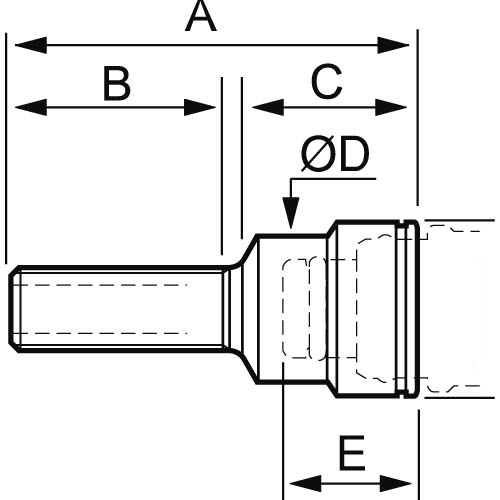

Dimensions

CPI_081050F18
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 081050F18
50
16.5
21
17.5
16.4
CPI 081100F18
100
60
21
17.5
16.4
CPI 081150F18
150
60
21
17.5
16.4

Description

Reference Net weight (kg) Flow rate Material Max. output pressure Security Temperature ID passage Type of filling 3D
CPI 081050F18 0,031 30.00 l/min ,ΔP = 0.50 bar) Nickel-plated brass 10.00 bar Without safety -15.00°C to 90.00°C 8 mm Straight-through 3D
CPI 081100F18 0,047 30.00 l/min ,ΔP = 0.50 bar) Nickel-plated brass 10.00 bar Without safety -15.00°C to 90.00°C 8 mm Straight-through 3D
CPI 081150F18 0,066 30.00 l/min ,ΔP = 0.50 bar) Nickel-plated brass 10.00 bar Without safety -15.00°C to 90.00°C 8 mm Straight-through 3D

Dimensions

Reference A mm B mm C mm D mm E mm
CPI 081050F18 50 16.5 21 17.5 16.4
CPI 081100F18 100 60 21 17.5 16.4
CPI 081150F18 150 60 21 17.5 16.4
CPI_081050F18
