Socket 135° tapered male thread
Net weight (kg)
0,05
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Male thread
R1/8
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Flow rate
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
CPI 081160RO
CPI 081161RO
CPI 081162RO

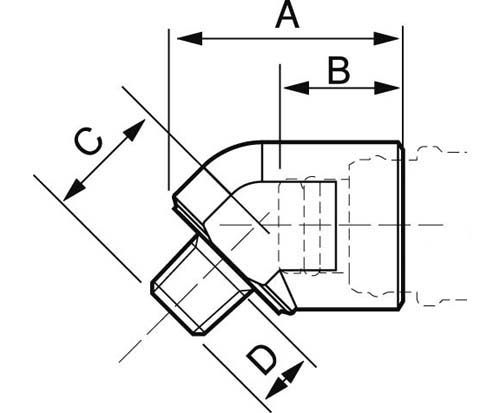

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 081160RO
31
18.5
16.5
10
CPI 081161RO
30
18.5
16.5
12
CPI 081162RO
31
18.5
16.5
12
Description
Dimensions
| Reference | A mm | B mm | C mm | D mm |
|---|---|---|---|---|
| CPI 081160RO | 31 | 18.5 | 16.5 | 10 |
| CPI 081161RO | 30 | 18.5 | 16.5 | 12 |
| CPI 081162RO | 31 | 18.5 | 16.5 | 12 |
