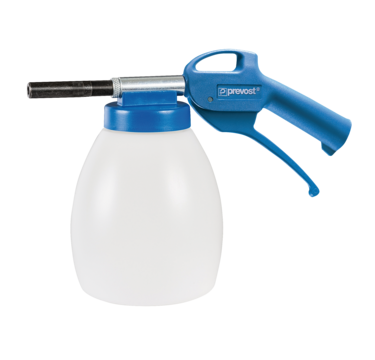

Sandblaster
Net weight (kg)
0,69
Capacity
1.20 L
Flow rate
110.00 l/min
Material
Polyamide
Max. output pressure
12.00 bar
Female thread
G1/4
Min. temperature
-10.00 °C
Profile
TRUFLATE
Description
Reference
Net weight (kg)
Capacity
Flow rate
Material
Max. output pressure
Female thread
Min. temperature
Profile
BG SAND1
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BG SAND1
260
200
Description
| Reference | Net weight (kg) | Capacity | Flow rate | Material | Max. output pressure | Female thread | Min. temperature | Profile | 3D |
|---|---|---|---|---|---|---|---|---|---|
| BG SAND1 | 0,69 | 1.20 L | 110.00 l/min | Polyamide | 12.00 bar | G1/4 | -10.00 °C | TRUFLATE |

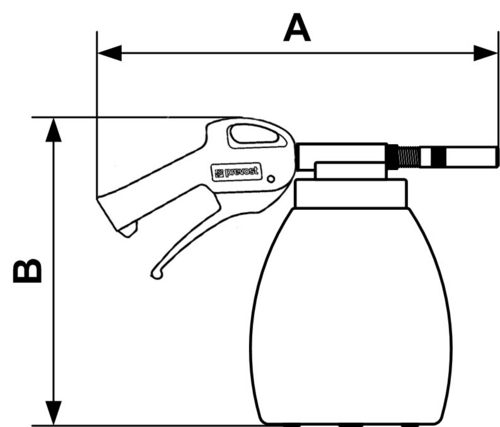

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| BG SAND1 | 260 | 200 |
