PVR UNI - PVC female union
Net weight (kg)
0,013
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PVR UNI20
PVR UNI25
PVR UNI32
PVR UNI40
PVR UNI50
PVR UNI63
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR UNI20
34
28
PVR UNI25
41
34
PVR UNI32
47
42
PVR UNI40
55
51
PVR UNI50
65
61
PVR UNI63
79
75
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PVR UNI20 | 0,013 | PVC | 13.00 bar | -20.00°C to 50.00°C | 20 mm mm | |
| PVR UNI25 | 0,0225 | PVC | 13.00 bar | -20.00°C to 50.00°C | 25 mm mm | |
| PVR UNI32 | 0,034 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm mm | |
| PVR UNI40 | 0,0588 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm mm | |
| PVR UNI50 | 0,079 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm mm | |
| PVR UNI63 | 0,137 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm mm |

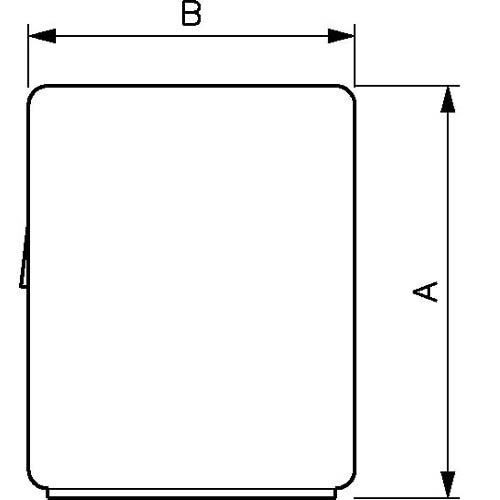

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PVR UNI20 | 34 | 28 |
| PVR UNI25 | 41 | 34 |
| PVR UNI32 | 47 | 42 |
| PVR UNI40 | 55 | 51 |
| PVR UNI50 | 65 | 61 |
| PVR UNI63 | 79 | 75 |
