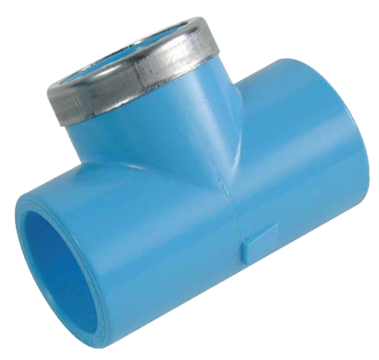

PVR TET - PVC Female thread tee piece
Net weight (kg)
0,027
Material
PVC
Max. output pressure
13.00 bar
Female thread
G1/2
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
For pipe OD
PVR TET2012
PVR TET2527
PVR TET3234

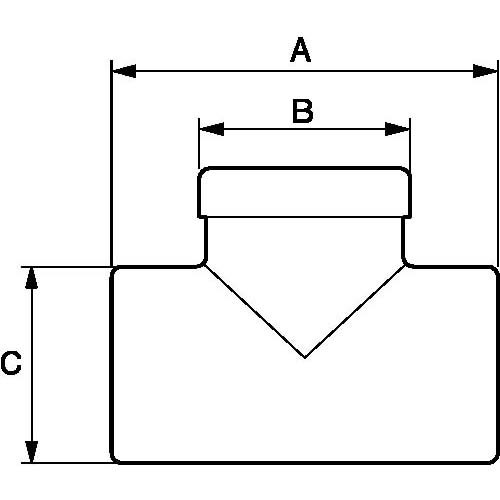

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR TET2012
54
27.5
28.5
PVR TET2527
66
33.5
34.5
PVR TET3234
78
42
43
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Female thread | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|
| PVR TET2012 | 0,027 | PVC | 13.00 bar | G1/2 | -20.00°C to 50.00°C | 20 mm mm | |
| PVR TET2527 | 0,044 | PVC | 13.00 bar | G3/4 | -20.00°C to 50.00°C | 25 mm mm | |
| PVR TET3234 | 0,08 | PVC | 13.00 bar | G1 | -20.00°C to 50.00°C | 32 mm mm |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PVR TET2012 | 54 | 27.5 | 28.5 |
| PVR TET2527 | 66 | 33.5 | 34.5 |
| PVR TET3234 | 78 | 42 | 43 |
