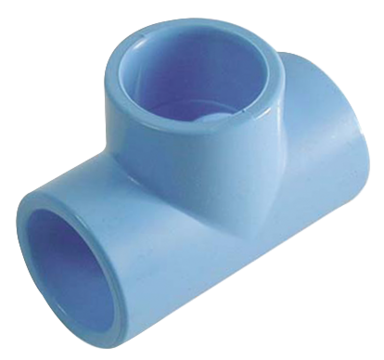

PVR TEE - PVC equal female tee piece
Net weight (kg)
0,026
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PVR TEE20
PVR TEE25
PVR TEE32
PVR TEE40
PVR TEE50
PVR TEE63
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR TEE20
54
27.5
PVR TEE25
66
33.5
PVR TEE32
78
42
PVR TEE40
94
51
PVR TEE50
114
61
PVR TEE63
142
75
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PVR TEE20 | 0,026 | PVC | 13.00 bar | -20.00°C to 50.00°C | 20 mm mm | |
| PVR TEE25 | 0,039 | PVC | 13.00 bar | -20.00°C to 50.00°C | 25 mm mm | |
| PVR TEE32 | 0,07 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm mm | |
| PVR TEE40 | 0,1221 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm mm | |
| PVR TEE50 | 0,169 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm mm | |
| PVR TEE63 | 0,3 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm mm |

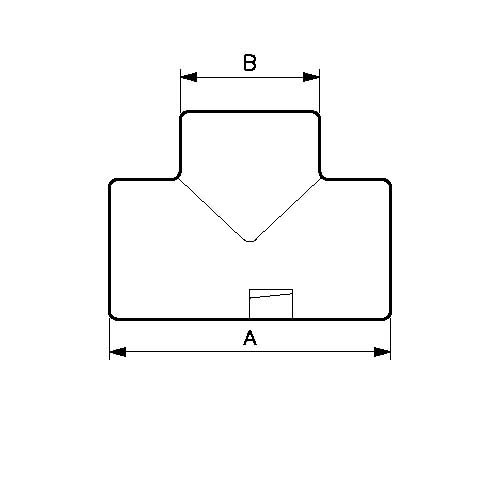

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PVR TEE20 | 54 | 27.5 |
| PVR TEE25 | 66 | 33.5 |
| PVR TEE32 | 78 | 42 |
| PVR TEE40 | 94 | 51 |
| PVR TEE50 | 114 | 61 |
| PVR TEE63 | 142 | 75 |
