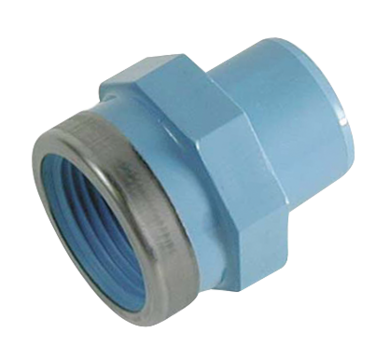

PVR RMT - PVC Straight female thread fitting
Net weight (kg)
0,02
Material
PVC
Max. output pressure
13.00 bar
Female thread
G1/2
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
For pipe OD
PVR RMT2012
PVR RMT2527

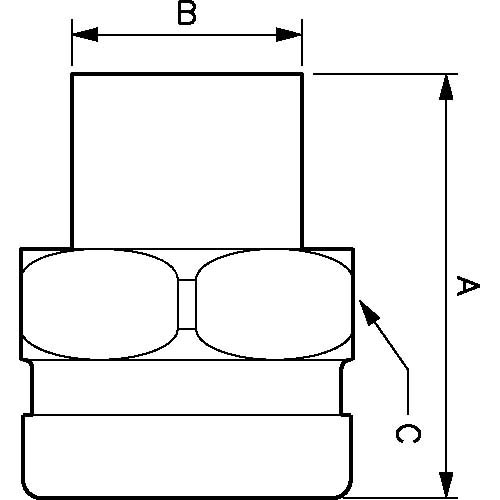

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR RMT2012
40.5
20
30
PVR RMT2527
45
25
36
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Female thread | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|
| PVR RMT2012 | 0,02 | PVC | 13.00 bar | G1/2 | -20.00°C to 50.00°C | 20 mm mm | |
| PVR RMT2527 | 0,028 | PVC | 13.00 bar | G3/4 | -20.00°C to 50.00°C | 25 mm mm |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PVR RMT2012 | 40.5 | 20 | 30 |
| PVR RMT2527 | 45 | 25 | 36 |
