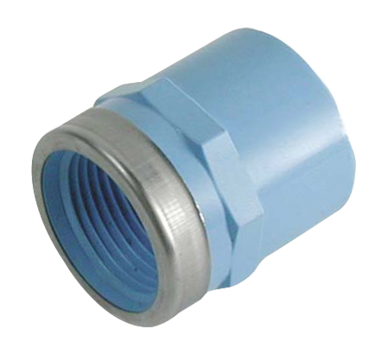

PVR RFT - PVC Straight female thread conector
Net weight (kg)
0,017
Material
PVC
Max. output pressure
13.00 bar
Female thread
G1/2
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
For pipe OD
PVR RFT2012
PVR RFT2527
PVR RFT3234

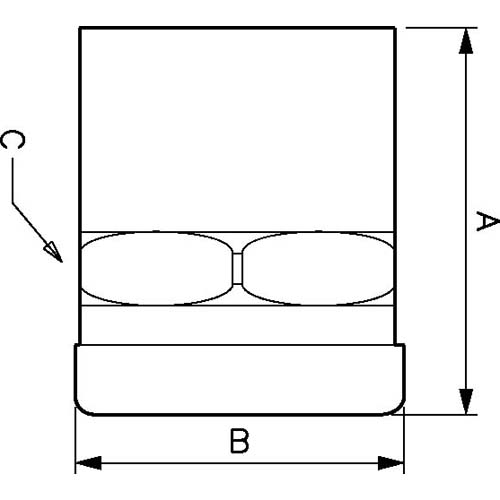

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR RFT2012
35
28
27.5
PVR RFT2527
42
34
33.5
PVR RFT3234
48
42
42
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Female thread | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|
| PVR RFT2012 | 0,017 | PVC | 13.00 bar | G1/2 | -20.00°C to 50.00°C | 20 mm mm | |
| PVR RFT2527 | 0,027 | PVC | 13.00 bar | G3/4 | -20.00°C to 50.00°C | 25 mm mm | |
| PVR RFT3234 | 0,041 | PVC | 13.00 bar | G1 | -20.00°C to 50.00°C | 32 mm mm |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PVR RFT2012 | 35 | 28 | 27.5 |
| PVR RFT2527 | 42 | 34 | 33.5 |
| PVR RFT3234 | 48 | 42 | 42 |
