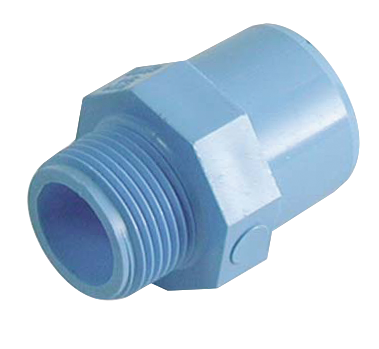

PVR RFM - PVC Straight female thread conector for colf-weld fitting or pipe
PVR RFM - PVC Straight female thread conector for colf-weld fitting or pipe
Net weight (kg)
0,009
Male thread
G1/2
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
16 mm; 20 mm mm
Description
Reference
Net weight (kg)
Male thread
Material
Max. output pressure
Temperature
For pipe OD
PVR RFM162012
PVR RFM202512
PVR RFM253227
PVR RFM324034
PVR RFM405042
PVR RFM506349
PVR RFM637560
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR RFM162012
43
20
24
PVR RFM202512
46
25
27
PVR RFM253227
50
32
36
PVR RFM324034
57
40
42
PVR RFM405042
67
50
55
PVR RFM506349
74
63
65
PVR RFM637560
84
75
75
Description
| Reference | Net weight (kg) | Male thread | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|
| PVR RFM162012 | 0,009 | G1/2 | PVC | 13.00 bar | -20.00°C to 50.00°C | 16 mm; 20 mm mm | |
| PVR RFM202512 | 0,012 | G1/2 | PVC | 13.00 bar | -20.00°C to 50.00°C | 20 mm; 25 mm mm | |
| PVR RFM253227 | 0,024 | G3/4 | PVC | 13.00 bar | -20.00°C to 50.00°C | 25 mm; 32 mm mm | |
| PVR RFM324034 | 0,036 | G1 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm; 40 mm mm | |
| PVR RFM405042 | 0,07 | G1 1/4 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm; 50 mm mm | |
| PVR RFM506349 | 0,11 | G1 1/2 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm; 63 mm mm | |
| PVR RFM637560 | 0,15 | G2 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm; 75 mm mm |

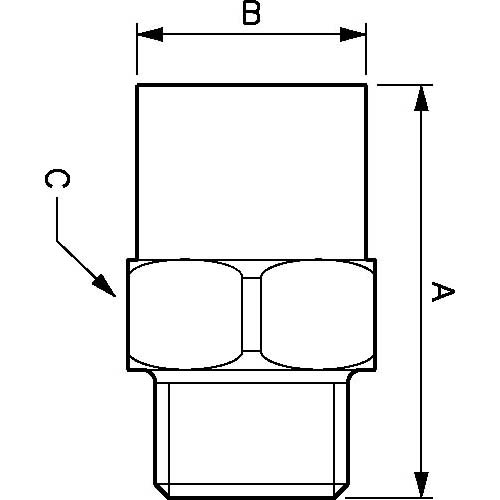

Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PVR RFM162012 | 43 | 20 | 24 |
| PVR RFM202512 | 46 | 25 | 27 |
| PVR RFM253227 | 50 | 32 | 36 |
| PVR RFM324034 | 57 | 40 | 42 |
| PVR RFM405042 | 67 | 50 | 55 |
| PVR RFM506349 | 74 | 63 | 65 |
| PVR RFM637560 | 84 | 75 | 75 |
