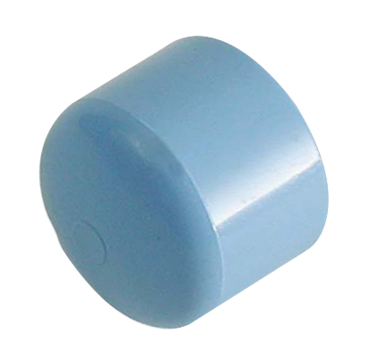

PVR BOU - PVC female cap
Net weight (kg)
0,0102
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PVR BOU20
PVR BOU25
PVR BOU32
PVR BOU40
PVR BOU50
PVR BOU63
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR BOU20
28
27
PVR BOU25
33
31
PVR BOU32
41
36
PVR BOU40
50
43
PVR BOU50
60
49
PVR BOU63
75
57
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PVR BOU20 | 0,0102 | PVC | 13.00 bar | -20.00°C to 50.00°C | 20 mm mm | |
| PVR BOU25 | 0,017 | PVC | 13.00 bar | -20.00°C to 50.00°C | 25 mm mm | |
| PVR BOU32 | 0,028 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm mm | |
| PVR BOU40 | 0,044 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm mm | |
| PVR BOU50 | 0,069 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm mm | |
| PVR BOU63 | 0,112 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm mm |

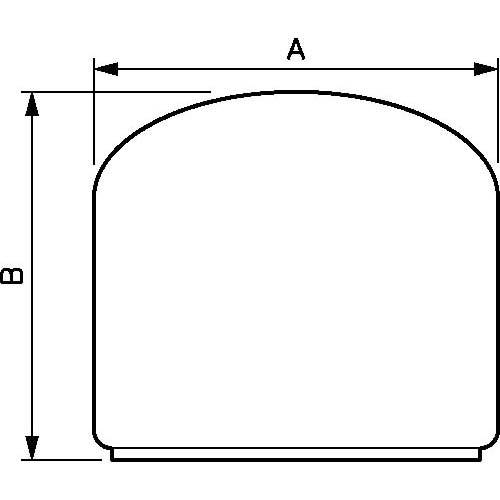

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PVR BOU20 | 28 | 27 |
| PVR BOU25 | 33 | 31 |
| PVR BOU32 | 41 | 36 |
| PVR BOU40 | 50 | 43 |
| PVR BOU50 | 60 | 49 |
| PVR BOU63 | 75 | 57 |
