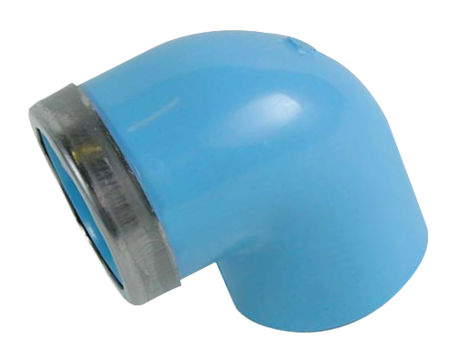

PVR 9CT - PVC Female 90° elbow
Net weight (kg)
0,02
Material
PVC
Max. output pressure
13.00 bar
Female thread
G1/2
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
For pipe OD
PVR 9CT2012
PVR 9CT2527

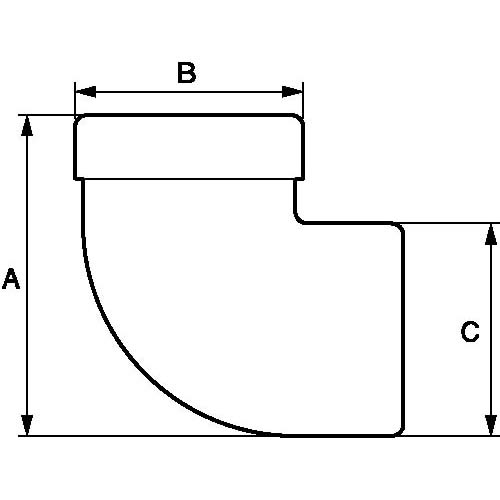

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR 9CT2012
41
27.5
26.5
PVR 9CT2527
51
33.5
32.5
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Female thread | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|
| PVR 9CT2012 | 0,02 | PVC | 13.00 bar | G1/2 | -20.00°C to 50.00°C | 20 mm mm | |
| PVR 9CT2527 | 0,032 | PVC | 13.00 bar | G3/4 | -20.00°C to 50.00°C | 25 mm mm |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PVR 9CT2012 | 41 | 27.5 | 26.5 |
| PVR 9CT2527 | 51 | 33.5 | 32.5 |
