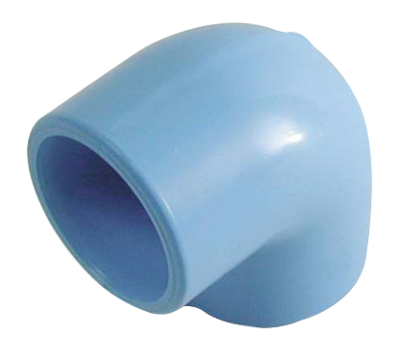

PVR 9CE - PVC equal female 90° elbow
Net weight (kg)
0,0155
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PVR 9CE20
PVR 9CE25
PVR 9CE32
PVR 9CE40
PVR 9CE50
PVR 9CE63
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR 9CE20
40
26.5
PVR 9CE25
50
32.5
PVR 9CE32
59
41
PVR 9CE40
74
50
PVR 9CE50
88
60
PVR 9CE63
108
75
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PVR 9CE20 | 0,0155 | PVC | 13.00 bar | -20.00°C to 50.00°C | 20 mm mm | |
| PVR 9CE25 | 0,029 | PVC | 13.00 bar | -20.00°C to 50.00°C | 25 mm mm | |
| PVR 9CE32 | 0,0537 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm mm | |
| PVR 9CE40 | 0,082 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm mm | |
| PVR 9CE50 | 0,127 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm mm | |
| PVR 9CE63 | 0,231 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm mm |

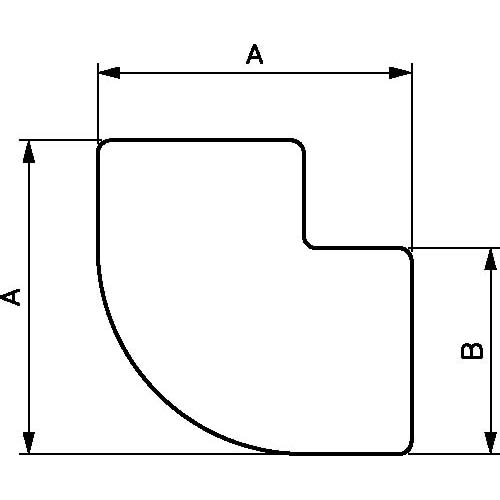

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PVR 9CE20 | 40 | 26.5 |
| PVR 9CE25 | 50 | 32.5 |
| PVR 9CE32 | 59 | 41 |
| PVR 9CE40 | 74 | 50 |
| PVR 9CE50 | 88 | 60 |
| PVR 9CE63 | 108 | 75 |
