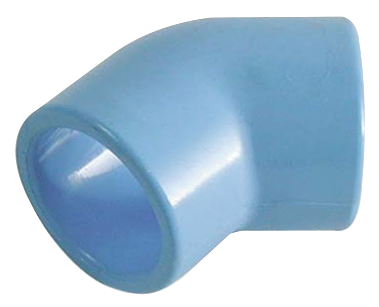

PVR 4CE- PVC equal female 45° elbow
Net weight (kg)
0,016
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PVR 4CE20
PVR 4CE25
PVR 4CE32
PVR 4CE40
PVR 4CE50
PVR 4CE63
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR 4CE20
48
28
PVR 4CE25
54
34
PVR 4CE32
65
42
PVR 4CE40
76
51
PVR 4CE50
92
61
PVR 4CE63
114
75
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PVR 4CE20 | 0,016 | PVC | 13.00 bar | -20.00°C to 50.00°C | 20 mm mm | |
| PVR 4CE25 | 0,026 | PVC | 13.00 bar | -20.00°C to 50.00°C | 25 mm mm | |
| PVR 4CE32 | 0,044 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm mm | |
| PVR 4CE40 | 0,0732 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm mm | |
| PVR 4CE50 | 0,107 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm mm | |
| PVR 4CE63 | 0,18 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm mm |

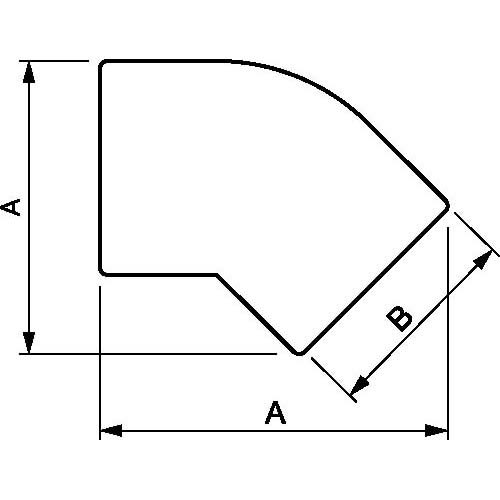

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PVR 4CE20 | 48 | 28 |
| PVR 4CE25 | 54 | 34 |
| PVR 4CE32 | 65 | 42 |
| PVR 4CE40 | 76 | 51 |
| PVR 4CE50 | 92 | 61 |
| PVR 4CE63 | 114 | 75 |
