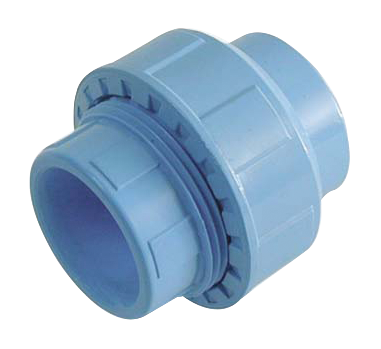

PVR 3UN - PVC 3-piece female - female union
Net weight (kg)
0,038
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PVR 3UN20
PVR 3UN25
PVR 3UN32
PVR 3UN40
PVR 3UN50
PVR 3UN63

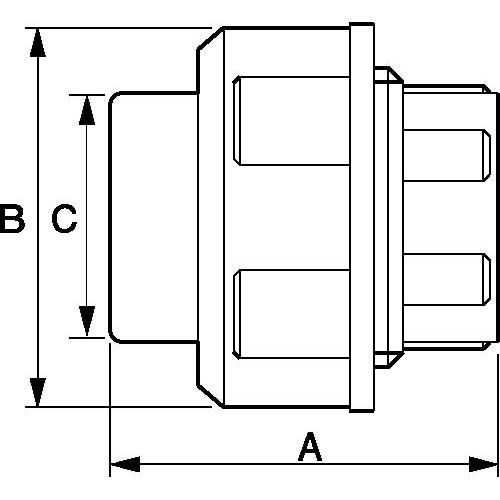

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR 3UN20
45
27.5
27.5
PVR 3UN25
51
34
34.5
PVR 3UN32
57
41
41.5
PVR 3UN40
67
51
51.5
PVR 3UN50
79
59
59
PVR 3UN63
98
96
74
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PVR 3UN20 | 0,038 | PVC | 13.00 bar | -20.00°C to 50.00°C | 20 mm mm | |
| PVR 3UN25 | 0,068 | PVC | 13.00 bar | -20.00°C to 50.00°C | 25 mm mm | |
| PVR 3UN32 | 0,093 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm mm | |
| PVR 3UN40 | 0,155 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm mm | |
| PVR 3UN50 | 0,18 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm mm | |
| PVR 3UN63 | 0,32 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm mm |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PVR 3UN20 | 45 | 27.5 | 27.5 |
| PVR 3UN25 | 51 | 34 | 34.5 |
| PVR 3UN32 | 57 | 41 | 41.5 |
| PVR 3UN40 | 67 | 51 | 51.5 |
| PVR 3UN50 | 79 | 59 | 59 |
| PVR 3UN63 | 98 | 96 | 74 |
