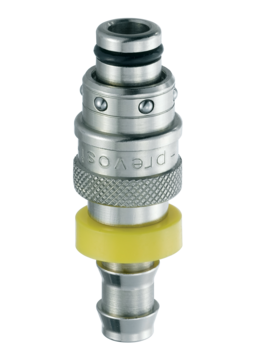

Push-on straight plug for self-locking hose
Net weight (kg)
0,054
Compatibility
LOCKFLEX
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through
For hose ID
10 mm
Description
Reference
Net weight (kg)
Compatibility
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
For hose ID
CPI 086810CN
CPI 086813CN

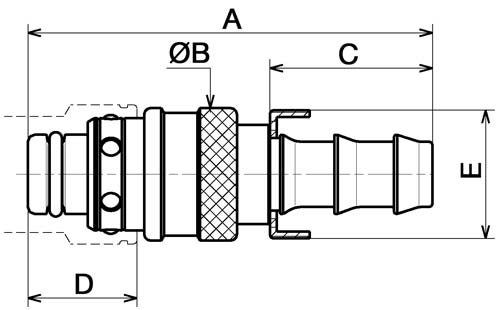

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 086810CN
61
20
24.5
16.4
19.4
CPI 086813CN
67
20
29
16.4
23.4
Description
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| CPI 086810CN | 61 | 20 | 24.5 | 16.4 | 19.4 |
| CPI 086813CN | 67 | 20 | 29 | 16.4 | 23.4 |
