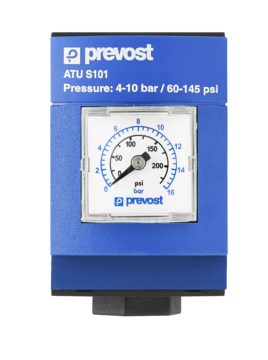

Progressive pressurization valve

Flow rate

1400.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)

Max. output pressure

10.00 bar

Female thread

G1/8

Reference

Flow rate

Max. output pressure

Female thread

Net weight (kg)

ATU S100

ATU S101

ATU S102

ATU S103

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

ATU S100

215

ATU S101

215

ATU S102

215

ATU S103

215

Reference	Flow rate	Max. output pressure	Female thread	Net weight (kg)
ATU S100	1400.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)	10.00 bar	G1/8
ATU S101	2500.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)	10.00 bar	G1/4	0,242
ATU S102	5300.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)	10.00 bar	G3/8	0,55
ATU S103	6400.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)	10.00 bar	G1/2	0,55
