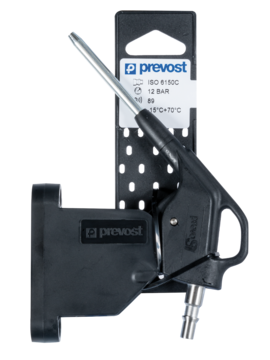

PREVOS1 standard blow gun set with wall support bracket
Net weight (kg)
0,149
Nozzle
Metallic
Flow rate
330.00 l/min
Force of blow-molding
390.00 G
Level sound
89.00 DBA
Dynamic pressure
2.20 BAR
ID passage
6 mm
Profile
ISO 6150C
Description
Reference
Net weight (kg)
Nozzle
Flow rate
Force of blow-molding
Level sound
Dynamic pressure
ID passage
Profile
FCBG 06MTLP
FCBG 06OSHP
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
FCBG 06MTLP
FCBG 06OSHP
Description
| Reference | Net weight (kg) | Nozzle | Flow rate | Force of blow-molding | Level sound | Dynamic pressure | ID passage | Profile | 3D |
|---|---|---|---|---|---|---|---|---|---|
| FCBG 06MTLP | 0,149 | Metallic | 330.00 l/min | 390.00 G | 89.00 DBA | 2.20 BAR | 6 mm | ISO 6150C | |
| FCBG 06OSHP | 0,131 | Venturi | 220.00 l/min | 260.00 G | 87.00 DBA | 1.00 BAR | ISO 6150C |
