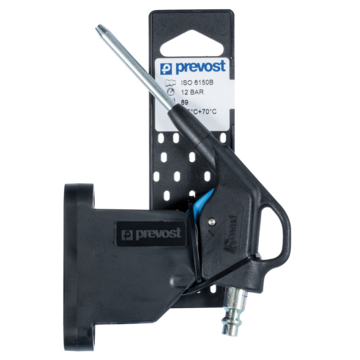

PREVOS1 standard blow gun set with wall support bracket
Net weight (kg)
0,159
Nozzle
Metallic Venturi
Flow rate
220.00 l/min
Force of blow-molding
248.00 G
Level sound
85.00 DBA
Dynamic pressure
2.30 BAR
Profile
ISO 6150B
Description
Reference
Net weight (kg)
Nozzle
Flow rate
Force of blow-molding
Level sound
Dynamic pressure
Profile
FIBG 06MTLHP
FIBG 06MTLP
FIBG 06OSHP
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
FIBG 06MTLHP
FIBG 06MTLP
FIBG 06OSHP
Description
| Reference | Net weight (kg) | Nozzle | Flow rate | Force of blow-molding | Level sound | Dynamic pressure | Profile | 3D |
|---|---|---|---|---|---|---|---|---|
| FIBG 06MTLHP | 0,159 | Metallic Venturi | 220.00 l/min | 248.00 G | 85.00 DBA | 2.30 BAR | ISO 6150B | |
| FIBG 06MTLP | 0,152 | Metallic | 330.00 l/min | 390.00 G | 89.00 DBA | 2.20 BAR | ISO 6150B | |
| FIBG 06OSHP | 0,134 | Venturi | 220.00 l/min | 260.00 G | 87.00 DBA | 1.00 BAR | ISO 6150B |
