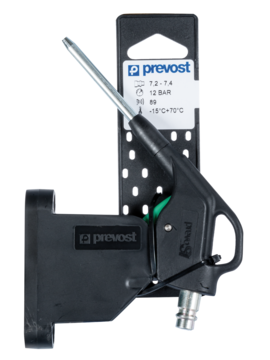

PREVOS1 standard blow gun set with wall support bracket
Net weight (kg)
0,16
Nozzle
Metallic Venturi
Flow rate
220.00 l/min
Force of blow-molding
248.00 G
Level sound
85.00 DBA
Dynamic pressure
2.30 BAR
ID passage
7.4 mm
Profile
EUROPEAN
Description
Reference
Net weight (kg)
Nozzle
Flow rate
Force of blow-molding
Level sound
Dynamic pressure
ID passage
Profile
FEBG 07MTLHP
FEBG 07MTLP
FEBG 07OSHP
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
FEBG 07MTLHP
FEBG 07MTLP
FEBG 07OSHP
Description
| Reference | Net weight (kg) | Nozzle | Flow rate | Force of blow-molding | Level sound | Dynamic pressure | ID passage | Profile | 3D |
|---|---|---|---|---|---|---|---|---|---|
| FEBG 07MTLHP | 0,16 | Metallic Venturi | 220.00 l/min | 248.00 G | 85.00 DBA | 2.30 BAR | 7.4 mm | EUROPEAN | |
| FEBG 07MTLP | 0,153 | Metallic | 330.00 l/min | 390.00 G | 89.00 DBA | 2.20 BAR | 7.4 mm | EUROPEAN | |
| FEBG 07OSHP | Venturi | 220.00 l/min | 260.00 G | 87.00 DBA | 1.00 BAR | 7.4 mm | EUROPEAN |
