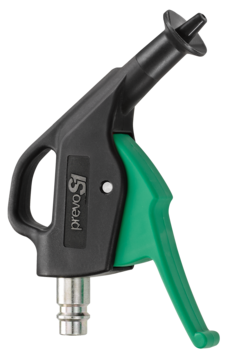

PREVOS1 blow gun with protective air curtain
Net weight (kg)
0,08
Nozzle
Air curtain
Flow rate
410.00 l/min
Force of blow-molding
131.00 G
Material
Polyamide
Level sound
87.00 DBA
Dynamic pressure
2.10 BAR
Max. output pressure
12.00 bar
Min. temperature
-15.00 °C
Profile
EUROPEAN
Description
Reference
Net weight (kg)
Nozzle
Flow rate
Force of blow-molding
Material
Level sound
Dynamic pressure
Max. output pressure
Min. temperature
Profile
EBG 07ECR

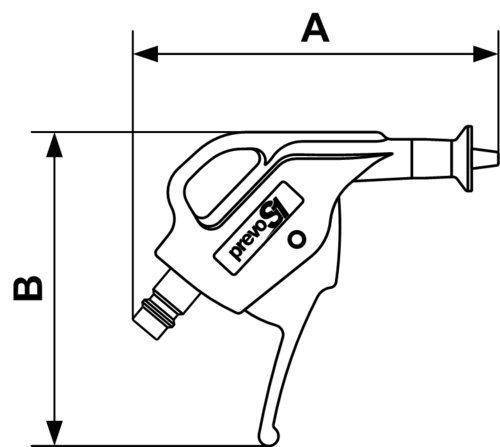

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
EBG 07ECR
113
97
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| EBG 07ECR | 113 | 97 |
