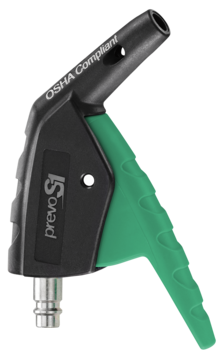

PREVOS1 blow gun with OSHA polyamide composite nozzle - Pocket model
Net weight (kg)
0,073
Nozzle
Venturi
Flow rate
230.00 l/min
Force of blow-molding
168.00 G
Material
Polyamide
Level sound
89.00 DBA
Dynamic pressure
0.50 BAR
Max. output pressure
12.00 bar
Min. temperature
-15.00 °C
Profile
EUROPEAN
Description
Reference
Net weight (kg)
Nozzle
Flow rate
Force of blow-molding
Material
Level sound
Dynamic pressure
Max. output pressure
Min. temperature
Profile
EPG 07OSH

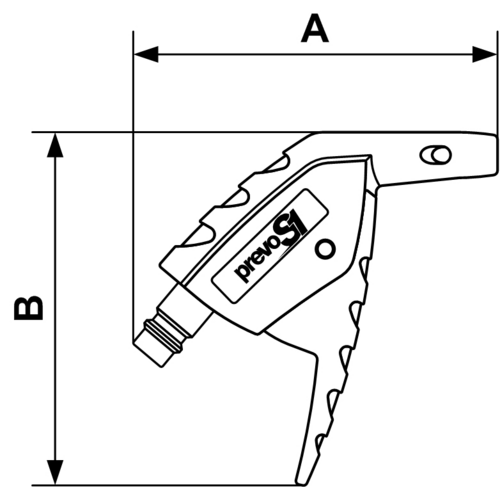

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
EPG 07OSH
96
93
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| EPG 07OSH | 96 | 93 |
